Vertical Type High Frequency High Power Transformer Low Leakage Inductance

Name: Vertical Type High Frequency High Power Transformer Low Leakage Inductance
Brand: Greenfair
Price: 1 USD

Vertical Type High Frequency High Power Transformer Low Leakage Inductance Manufactures

Brand Name : Greenfair

Model Number : EFD series

Certification : CE, UL, ISO9001

Place of Origin : China

MOQ : 1000pcs

Packaging Details : carton box

type : EER transformer

frequency : 1khz-200khz

core grade : PC40, 3C90,TP4

bobbin material : Phenolic

phase : single

Structure : Vertical

teflon tube : yes

margin tape : yes

Contact Now

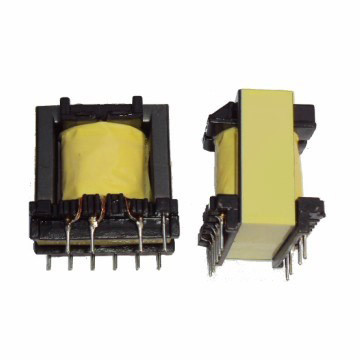

EER Series EER35 vertical type high frequency transformer low leakage inductance, excellent winding

EER Transformer
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Greenfair, GFE, GE
Model Number: EER16/15, EER25/18, EER25/27, EER26/9, EER26/18, EER28/28, EER28/34, EER29/40, EER30/32, EER33/34, EER34/35, EER35/42, EER39/29, EER39/36, EER39/40, EER39/44, EER40/42, EER40/45, EER42/43, EER42/43A, EER42/44, EER43/47, EER44/45, EER49/54, EER49/49, EER53/46, EER53/46, EER55/55, EER60/60.
Usage: High Frequency
Phase: Single
Coil Structure: Toroidal
Coil Number: Autotransformer
color: yellow, red, blue
size: vertical
Core grade: PC40, 3C90,TP4,etc
Bobbin material: Phenolic

Application:
LED driver
Lightening appliance
Communication equipment
LCD Power Supply

Converter and inverter

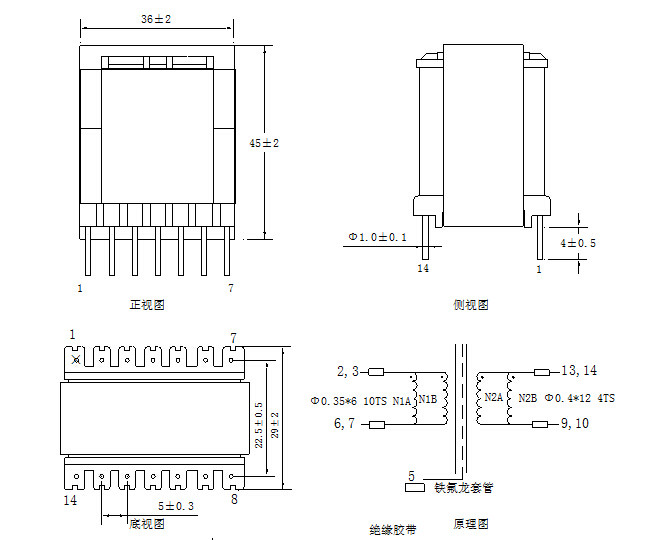

Vertical Type High Frequency High Power Transformer Low Leakage Inductance

NO	Parameter	pins	test value	test condition
1	indutance	LN1	50--70uH	1KHz 0.3V
2	Q value	N1	＞150	100KHz 0.3V
3	leakage inductance	N1	≤10uH	1KHz 0.3V
4	Hi-pot	N1--N2	1800Vac without break	1mA 60S
5	Hi-pot	N1--CORE	1800Vac without break	1mA 60S
6	Hi-pot	N2--CORE	1800Vac without break	1mA 60S
7	DCR	N1	≤40mΩ	25℃
8	DCR	N2	≤40mΩ	25℃

no	material	spec.
1	core	EER3542S PL-7&PC40
2	bobbin	ERL3504 FR50
3	wire	UEW-2 Ø0.35mmØ0.4mm NTL 130℃
4	tape	CT-280 1mil28mm & 1mil12mm YLW 130℃
5	margin	0.2*1.5mm
6	teflon	TFT Φ0.38mmΦ1.2mmΦ1.5mm TRN 300V 200℃
7	copper foil	0.05*20mm

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range		Humidity range		Standard test conditions
Operating temperature*	Storage temperature	Operating temperature**	Storage temperature**	Operating temperature**	Storage temperature**
( ℃)	( ℃)	( % RH)	( % RH)	( ℃)	( % RH)
-30 to +120	-40 to +80	10 to +95	10 to +95	25 ± 10	25 to +75

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing

Vertical Type High Frequency High Power Transformer Low Leakage Inductance
